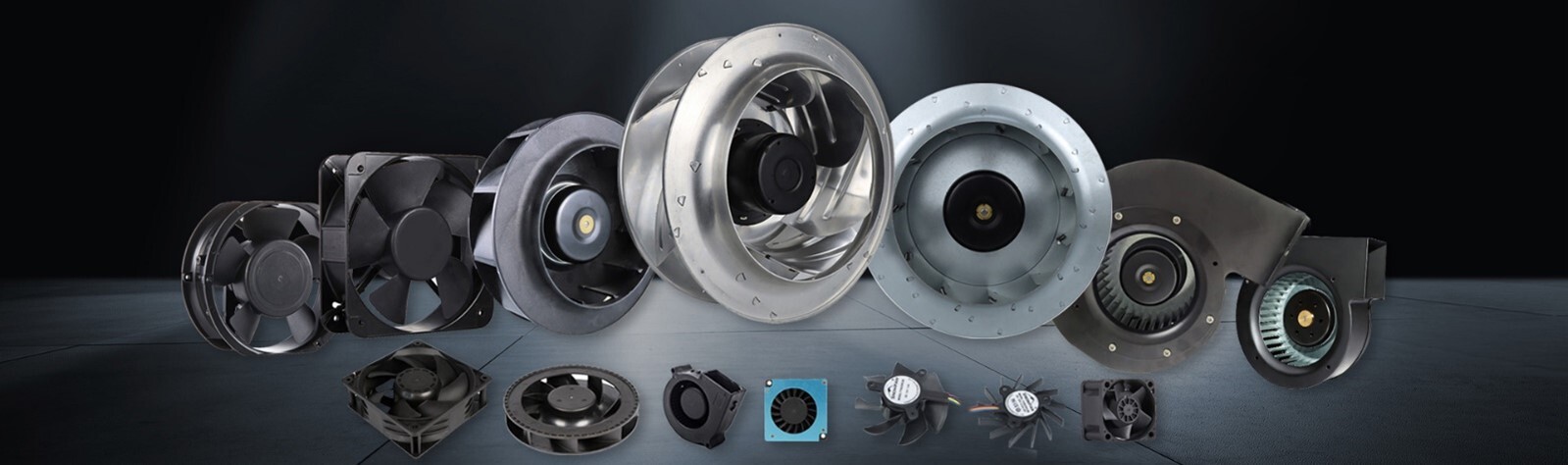

DC Axial
Our DC fans were widely used in all kinds of applications in electronic and electric field, available with 5V,12V,24V, 48V and custom voltage upon your request.
Function like RD, FG, PWM and others are also optional to your demand.
Please check on the following list and click on the "Link" for detailed spec data.
|
Model series |
size (mm) |
Voltage (V) |
Current (Amp) |
Airflow (CFM) |
Pressure (InH2O) |
Noise (dBA) |
More Spec. |
|
YY2006 |
20x20x6 |
5/12 |
0.04-0.16 |
0.79-1.12 |
0.077-0.106 |
21.5-31.2 |
|
|
YY2010 |
20x20x10 |
5/12 |
0.03-0.13 |
0.78-1.13 |
0.089-0.168 |
20-27 |
|
|
YY2507 |
25x25x7 |
5/12 |
0.05-0.30 |
0.85-2.36 |
0.049-0.26 |
21-38 |
|
|
YY2510 |
25x25x10 |
5/12 |
0.04-0.23 |
1.57-2.75 |
0.11-0.40 |
25.6-38 |
|
|
YY3007 |
30x30x7 |
5/12 |
0.6-1.56 |
1.23-3.81 |
0.03-0.24 |
22-38.5 |
|
|
YY3010 |
30x30x10 |
5/12 |
0.48-1.20 |
1.84-4.46 |
0.05-0.27 |
24-37.8 |
|
|
YY3507 |
35x35x7 |
5/12 |
0.55-1.68 |
2.32-5.21 |
0.04-0.16 |
22-37 |
|
|
YY3510 |
35x35x10 |
5/12 |
0.04-0.24 |
2.59-6.15 |
0.06-0.25 |
25.4-42 |
|
|
YY4007 |
40x40x7 |
5/12 |
0.05-0.25 |
2.58-4.72 |
0.04-0.12 |
24-35 |
|
|
YY4010-1 |
40x40x10 |
5/12 |
0.08-0.20 |
5.97-8.23 |
0.10-0.18 |
28.5-39.6 |
|
|
YY4010-4 |
40x40x10 |
5/12/24 |
0.02-0.17 |
5.02-7.30 |
0.11-0.20 |
31-40.5 |
|
|
YY4015 |
40x40x15 |
5/12/24 |
0.03-0.21 |
4.72-13.01 |
0.07-0.46 |
23.8-41.0 |
|
|
YY4020 |
40x40x20 |
5/12/24 |
0.02-0.16 |
6.13-15.81 |
0.13-0.69 |
28.7-46 |
|
|
YY4028 |
40x40x28 |
5/12/24 |
0.08-0.60 |
13.25-30.33 |
0.65-2.82 |
44.2-65.1 |
|
|
YY4510-2 |
45x45x10 |
5/12/24 |
0.03-0.27 |
7.37-11.25 |
0.09-0.18 |
33.2-42 |
|
|
YY5010-3 |
50x50x10 |
5/12/24 |
0.03-0.15 |
7.74-14.13 |
0.10-0.20 |
25.36.5 |
|
|
YY5015 |
50x50x15 |
5/12/24 |
0.05-0.26 |
10.64-18.68 |
0.12-0.32 |
29.3-44.5 |
|
|
YY5020 |
50x50x20 |
5/12/24 |
0.05-0.40 |
12.18-20.78 |
0.10-0.27 |
28.2-41.5 |
|
|
YY6010 |
60x60x10 |
5/12/24 |
0.03-0.12 |
9.50-18.56 |
0.04-0.12 |
22.7-33.4 |
|
|
YY6015-1 |
60x60x15 |
5/12/24 |
0.10-0.35 |
15.09-25.0 |
0.14-0.29 |
32.2-45.0 |
|
|
YY6020 |
60x60x20 |
5/12/24 |
0.03-0.12 |
16.52-21.15 |
0.13-0.21 |
33.5-40.9 |
|
|
YY6025-2 |
60x60x25 |
12/24/48 |
0.05-0.42 |
17.77-31.21 |
0.14-0.41 |
30.4-45.4 |
|
|
YY6025-4 |
60x60x25 |
12/24/48 |
0.20-0.77 |
49.47 |
1.3 |
57.5 |
|
|
YY6038-1 |
60x60x38 |
12/24/48 |
0.06-1.50 |
20.83-63.56 |
0.23-1.91 |
37.4-62.5 |
|
|
YY6038-2 |
60x60x38 |
12/24/48 |
0.04-1.70 |
14.65-66.16 |
0.22-3.26 |
27.8-65.3 |
|
|
YY7010-1 |
70x70x10 |
5/12/24 |
0.05-0.33 |
10.31-18.46 |
0.04-0.08 |
23.4-30.9 |
|
|
YY7010-2 |
70x70x10 |
5/12/24 |
0.08-0.37 |
22.48 |
0.11 |
33.7 |
|
|
YY7015 |
70x70x15 |
5/12/24 |
0.04-0.20 |
22.52-28.97 |
0.12-0.18 |
33.5-40.5 |
|
|
YY7020 |
70x70x20 |
5/12/24 |
0.06-0.48 |
21.36-42.09 |
0.08-0.30 |
26.3-44.3 |
|
|
YY7025 |
70x70x25 |
12/24/48 |
0.07-0.68 |
26.05-54.55 |
0.13-0.53 |
30.3-53.6 |
|
|
YY8010 |
80x80x10 |
5/12/24 |
0.04-0.22 |
18.65-26.59 |
0.05-0.09 |
31.3-36.3 |
|
|
YY8010-2 |
80x80x10 |
5/12/24 |
0.12-0.60 |
31.49 |
0.08 |
40.3 |
|
|
YY8015-1 |
80x80x15 |
5/12/24 |
0.03-0.17 |
21.59-37.71 |
0.05-0.15 |
24-40 |
|
|
YY8020 |
80x80x20 |
12/24/48 |
0.07-0.33 |
21.7-42.67 |
0.08-0.26 |
28-47.2 |
|
|
YY8025-1 |
80x80x25 |
12/24/48 |
0.06-0.32 |
30.54-54.67 |
0.10-0.30 |
28.9-44.3 |
|
|
YY8025-2 |
80x80x25 |
12/24/48 |
0.10-0.72 |
53.98-67.27 |
0.28-0.43 |
45-52.1 |
|
|
YY8032 |
80x80x32 |
12/24/48 |
0.06-1.20 |
46.55-93.64 |
0.287-0.99 |
39-59 |
|
|
YY8038-1 |
80x80x38 |
12/24/48 |
0.10-2.50 |
50.03-111.87 |
0.32-1.40 |
45.6-66.6 |
|
|
YY8038-2 |
80x80x38 |
12/24/48 |
0.06-3.29 |
50.91-137.44 |
0.34-2.00 |
41.1-65 |
|
|
YY8038-3 |
80x80x38 |
12/24/48 |
0.65-2.70 |
117.2 |
3.75 |
68.5 |
|
|
YY9225-2 |
92x92x25 |
12/24/48 |
0.13-1.05 |
83.41-103.8 |
0.28-0.42 |
49-56.3 |
|
|
YY9225-3 |
92x92x25 |
12/24/48 |
0.04-0.20 |
32.29-73.55 |
0.08-0.34 |
26-49 |
|
|
YY9232 |
92x92x32 |
12/24/48 |
0.11-0.98 |
61.47-101.93 |
0.24-0.62 |
32-51.6 |
|
|
YY9238-1 |
92x92x38 |
12/24/48 |
0.10-1.80 |
70.99-132.58 |
0.35-1.13 |
48-63.6 |
|
|
YY9238-2 |
92x92x38 |
12/24/48 |
0.05-2.50 |
59.87-166.69 |
0.25-1.45 |
39-65.5 |
|
|
YY12025-3 |
120x120x25 |
12/24/48 |
0.15-2.30 |
99.72-188.48 |
0.42-1.26 |
53-69 |
|
|
YY12025-8 |
120x120x25 |
12/24/48 |
0.09-1.00 |
112.2-149.0 |
0.26-0.43 |
44.5-52.3 |
|
|
YY12032 |
120x120x32 |
12/24/48 |
0.09-1.60 |
82.85-172.57 |
0.16-0.65 |
40-60.3 |
|
|
YY12038-1 |
120x120x38 |
12/24/48 |
0.12-4.0 |
55.61-252.02 |
0.11-1.80 |
31-67.2 |
|
|
YY12038-2 |
120x120x38 |
12/24/48 |
0.09-3.40 |
69.71-271.04 |
0.08-1.19 |
35.2-67.8 |
|
|
YY12038-3 |
120x120x38 |
12/24/48 |
0.07-4.0 |
90-249.03 |
0.18-1.28 |
43.2-69.6 |
|
|
YY12038-6 |
120x120x38 |
12/24/48 |
0.20-3.80 |
144-246.2 |
0.53-1.55 |
54.2-69.5 |
|
|
YY12038-8 |
120x120x38 |
12/24/48 |
0.80-10.0 |
218-308.5 |
2.72-6.69 |
66.7-78 |
|
|
YY12038-9 |
120x120x38 |
12/24/48 |
0.25-2.80 |
160.6-228.6 |
1.53-2.16 |
60.7-68.7 |
|
|
YY13050-1 |
130x130x50 |
12/24/48 |
0.04-1.03 |
36.4-80.4 |
0.13-0.29 |
23.6-43.51 |
|
|
YY13050-2 |
130x130x50 |
12/24/48 |
0.02-0.95 |
43.6-115.3 |
0.14-0.36 |
29.3-51.4 |
|
|
YY14025 |
140x140x25 |
12/24/48 |
0.11-0.95 |
74.82-167.55 |
0.06-0.25 |
32.6-55.5 |
|
|
YY14038 |
140x140x38 |
12/24/48 |
0.32-5.40 |
178.5-358.8 |
1.17-3.11 |
62.3-76.9 |
|
|
YY15050-2 |
150x150x50 |
12/24/48 |
0.13-6.30 |
141.5-448.2 |
0.25-2.31 |
44.8-84.1 |
|
|

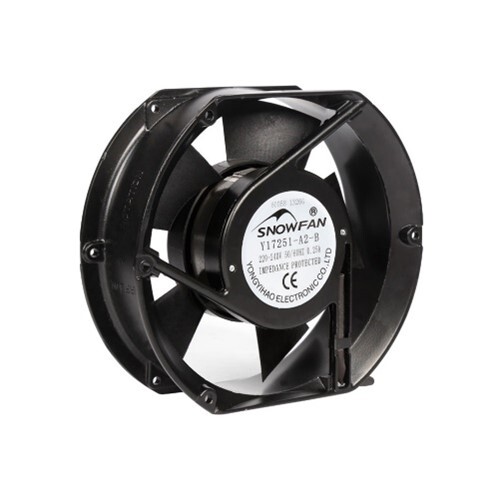

YY17251-2 |
171x153x51 |
12/24/48 |
0.11-6.3 |
136.95-488.75 |
0.25-2.38 |
46-82.5 |
|
|
YY20060 |
200x200x60 |
12/24/48 |
0.18-7.40 |
270-583 |
0.29-1.23 |
53.1-72.6 |
|
|
YY25489 |
Φ254x89 |
12/24/48 |
0.20-7.80 |
305-1296 |
0.46-1.66 |
53.4-89.6 |
